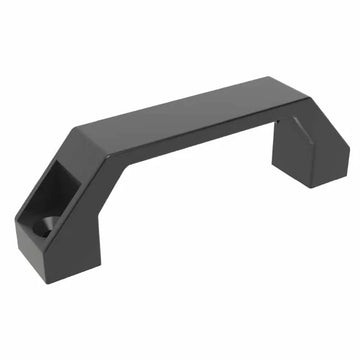

GRP Bridge Handle Black - Countersunk Fixing

Regular price £7.99
Sale price £7.99 Regular price
Unit price
Tax included.
Compare Contact us to order

Contact us to order

* Required fields

Share

Description

Dimension “A” applies after mounting. Before mounting it can be up to 2 mm smaller due to the release of the bending stress.

All sizes in mm unless otherwise specified:

120mm Hole Centres

  • A = 120
  • B = 8
  • D = 6.6
  • E = 26
  • F = 9.6
  • H = 42
  • L = 138
  • L1 = 96
  • Load = 100Kg



140mm Hole Centres

  • A = 140
  • B = 8
  • D = 6.6
  • E = 26
  • F = 9.6
  • H = 42
  • L = 158
  • L1 = 116
  • Load = 100Kg



160mm Hole Centres

  • A = 160
  • B = 9
  • D = 6.6
  • E = 28
  • F = 9.6
  • H = 45
  • L = 178
  • L1 = 136
  • Load = 100Kg
