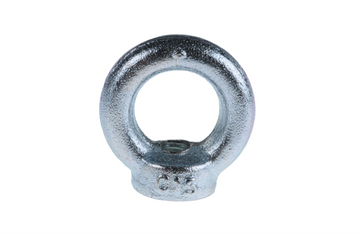

Steel Lifting Eye Nut - M8

Description

Thread Size: M8
Eye Diameter: 20 mm
Outer Diameter: Ø36mm
Working Load Limit: 0.14t Load
Material: Carbon Steel
Finish: Zinc Plated

M8 Eye Nuts
This Zinc Plated Eye Nut is intended for linear pulling loads in the direction of the thread. The Zinc Plated Eye Nut is proof tested and supplied complete with test certificate.

Features and Benefits
• Galvanised steel construction
• Easy to inspect for damage
• Shock absorbing
• High resistance to abrasion

Applications
This Zinc Plated Eye Nut is suitable for wide variety of applications such as tensioning wires, securing loads and lifting applications.

Note
Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.
