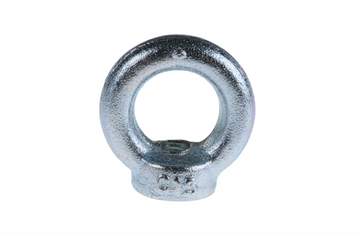

Steel Lifting Eye Nut - M12

Description

Thread Size: M12
Eye Diameter: Ø30mm
Outer Diameter: Ø54mm
Working Load Limit: 0.34t
Material: Carbon Steel
Finish: Zinc Plated  M12 Eye Nuts
This Zinc Plated Eye Nut is intended for linear pulling loads in the direction of the thread. The Zinc Plated Eye Nut is proof tested and supplied complete with test certificate.

Features and Benefits
• Galvanised steel construction
• Easy to inspect for damage
• Shock absorbing
• High resistance to abrasion
• Fatigue rated at 1 – times the working load limit at 20 000 cycles
• UNC (unified coarse pitch) thread

Applications
This Zinc Plated Eye Nut is suitable for wide variety of applications such as tensioning wires, securing loads and lifting applications.

Note
Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.
